Project 2 - Offshore Oil Fields Asset ( Shell / Brunei)

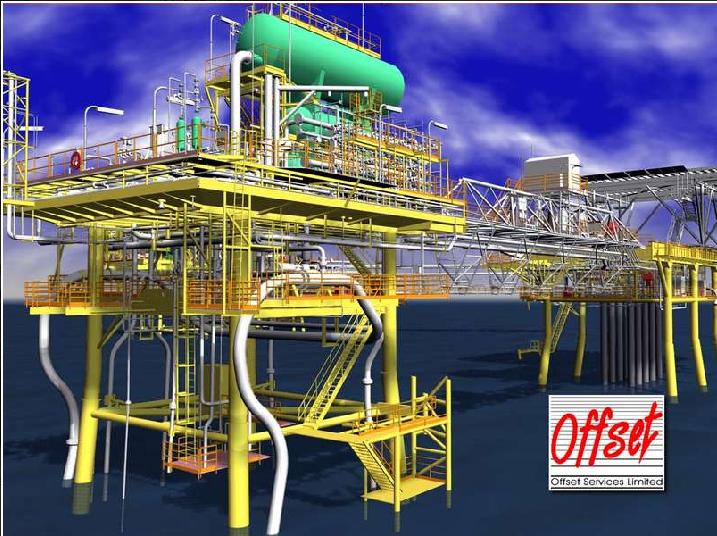

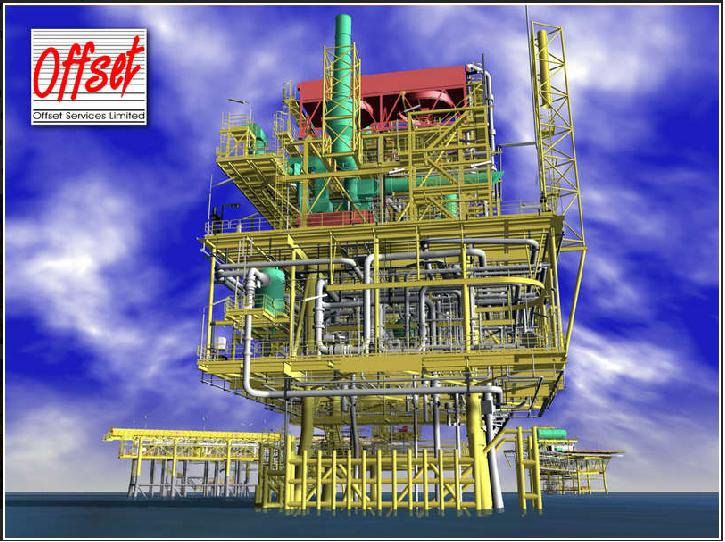

The scope of work was to fully survey and model all above sea level mechanical / electrical / instrumentation and infrastructure assests of all the offshore platforms of the AMPA 9 and Fairley 1 & 2 oilfield complexes. The resultant models were to be used for revamp / retrofit / expansion / de-bottlenecking projects and eventually the data would be committed to plant assest data management and operating envelope systems.

For more information visit Offset Services or follow the link.

My involvement client facing:

Scope of work visit. Departed by boat from KB jetty and visited offshore platforms for estimate, plan and safety assessment over a 3 day period. That me asleep on the way back from last visit.
Preparation of project plan, cost and schedule.
Presentation and negotiation of project plan, cost and schedule and presentation to clients managing contractor (DamitWorley)
Presentation of safety case to support project acceptance by client.
Established setting out survey criteria to streamline survey schedule during estimate visit.
Team leader for model build and conversion to PDMS. This required support from our software team to customise our PDMS traslator to suit the clients requirements.
QA / QC for all site activities.
QA / QC for all model build.
Client negotiations over model deliverable and final deliverable check.

Project statistics:

Over 5000 images delivered in Visual Database.
Over 10 full platforms surveyed and modelled.
Over 70000 m³ of plant modelled in 3D.
Site team 6 engineers + client support (fire watch for permit).
Modelling team 8 engineers.
Project delivered on time and on budget.

Project 1 - B30 Decommissioning (Nukem / BNFL)

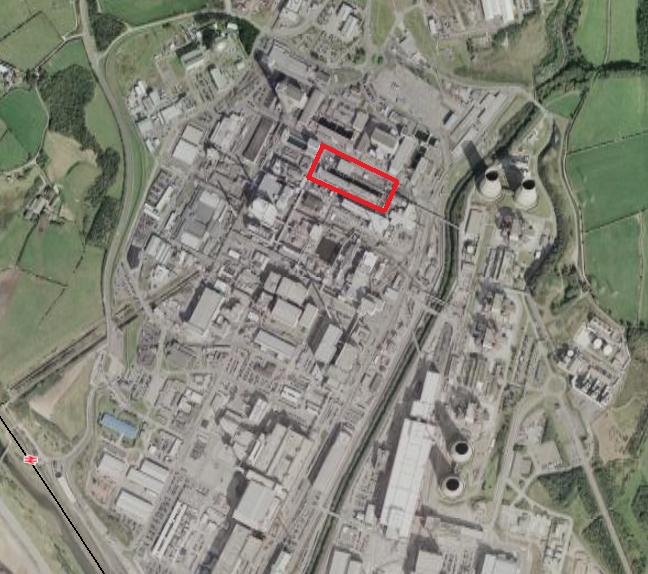

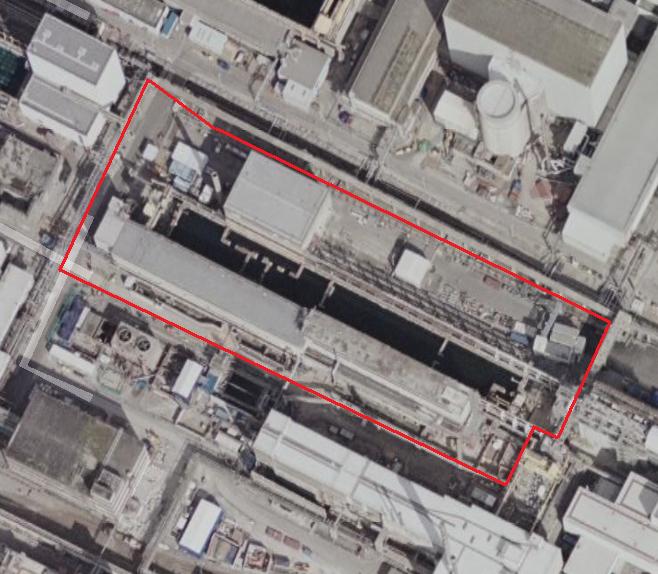

In order for B30 to be fully decommissioned then many of the old systems needed to be brought up to date. Nukem / BNFL commissioned Offset Services to build an accurate 3D PDMS design model so that retro engineering studies could be undertaken. The project was a resounding success for all parties involved in the endeavour.

For more information visit Offset Services or follow the link.

Nuclear Plant

My involvement client facing:

Scope of work walk round with client.
Preparation of project plan, cost and schedule.
Presentation and negotiation of project plan, cost and schedule.
Presentation of safety case to support project acceptance by client.
Team leader for setting out survey (getting the project started on site).
Company representative for progress meetings.
Team leader for model build and conversion to PDMS.
QA / QC for all site activities.
QA / QC for all model build.
Presentation of model to client to facilitate client acceptance and payment.

Project statistics:

Over 6000 images delivered in Visual Database.
Over 42000 m³ of plant modelled in 3D.
Site team 4 engineers + client support.
Modelling team 6 engineers.
Project delivered on time and on budget.

Sorry - no model data available for security reasons.
